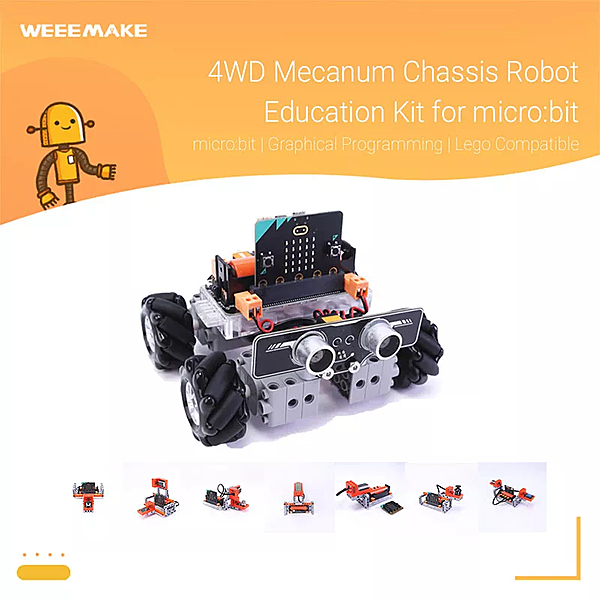

Name: 4WD Mecanum Chassis Robot Education Kit for micro:bit / mPython Board
Brand: Weeemake
SKU: 161062
Price: 35599.0 INR
Availability: InStock

Write a review

₹35,599.00 ₹39,558.00

Tags:

An expansion set for micro:bit V2 and mPython board. The product is equipped with up to 10+ electronic modules and can assemble 11 robot projects including a four-wheel drive moving robot chassis for rich robot applications.

Video Url

https://www.youtube.com/embed/_uu2w-4dNX8?si=PNDoITkDi_TVRYo0

Quantity

Add to Cart

Product Details

Weeemake 4WD Mecanum Chassis Robot Education Kit for micro:bit/mPython board is an expansion set for micro:bit V2 and mPython board. The shield is compatible with both controllers, with 4 dc motor ports, 4 RJ11 ports, 2 servo motor ports, an IR receiver, and 1 pc of 18650 lithium battery. The product is equipped with up to 10+ electronic modules and can assemble 11 robot projects including a four-wheel drive moving robot chassis for rich robot applications.

Note: the micro:bit or mPython board is not included in the kit, and should be purchased separately.

Projects

2 in 1 shield board for micro:bit and mPython board
ELF 2 IN 1 Shield Board is an expansion board which support micro:bit V1, micro:bit V2 and mPython board.

This shield board comes with one controller slot, 4 x RJ11 port (Weeemake sensors), 4 x DC motor ports, 2 x servo motor ports, 1x IR receiver, 1 x 18650 rechargeable Li-ion battery, and 1 x microUSB port for battery charging.

Simple but powerful to drive a 4WD robot chassis, or more projects.

Curriculum
16 chapters curriculum is ready, get started with graphical or Python programming with this 4WD robot chassis kit.

No.	Name	Learning Hour	School Class
1	Introduction of the microbit	45 mins	1 Lesson
2	LED Display	45 mins	1 Lesson
3	Pedometer	45 mins	1 Lesson
4	Smart Night Light	45 mins	1 Lesson
5	Gradienter (Spirit Level)	45 mins	1 Lesson
6	Timer	45 mins	1 Lesson
7	Thermometer and Hygrometer	45 mins	1 Lesson
8	Kitchen Alarm	45 mins	1 Lesson
9	Raindrop Detector	45 mins	1 Lesson
10	Homemade Music	45 mins	1 Lesson
11	Pac-man	45 mins	1 Lesson
12	Counting Chalenge	45 mins	1 Lesson
13	Run it! Mike	45 mins	1 Lesson
14	Mike Avoids Obstacles	45 mins	1 Lesson
15	Follower Mike	45 mins	1 Lesson
16	Mike Patrols the Line	45 mins	1 Lesson

Parameter

Mainboard:	ELF Shield for micro:bit/mPython board	User:	Entry-level (8+)
External Electronics:	RGB ultrasonic sensor	Wiring Port:	1x Controller slot
	Double-way line-following sensor		4x RJ11 port
	IR avoid sensor		4x DC motor port
	Water sensor (raindrop)		2x Servo motor port
	Touch sensor		1x MicroUSB charging port
	Temperature and humidity sensor	Onbard Electronics:	1x IR Receiver
	Combustible Gas MQ2 Sensor		1x 18650 Lithium battery
	4-digit LED display	Motor:	4x Motor
	Joystick	Software:	WeeeCode (Scratch + Python)
	Potentiometer	Curriculum:	11 robot forms, 16 chapter (90 mins/chapter)
Operation Voltage:	3.7-4.2V	Size:	130x170x106 mm
