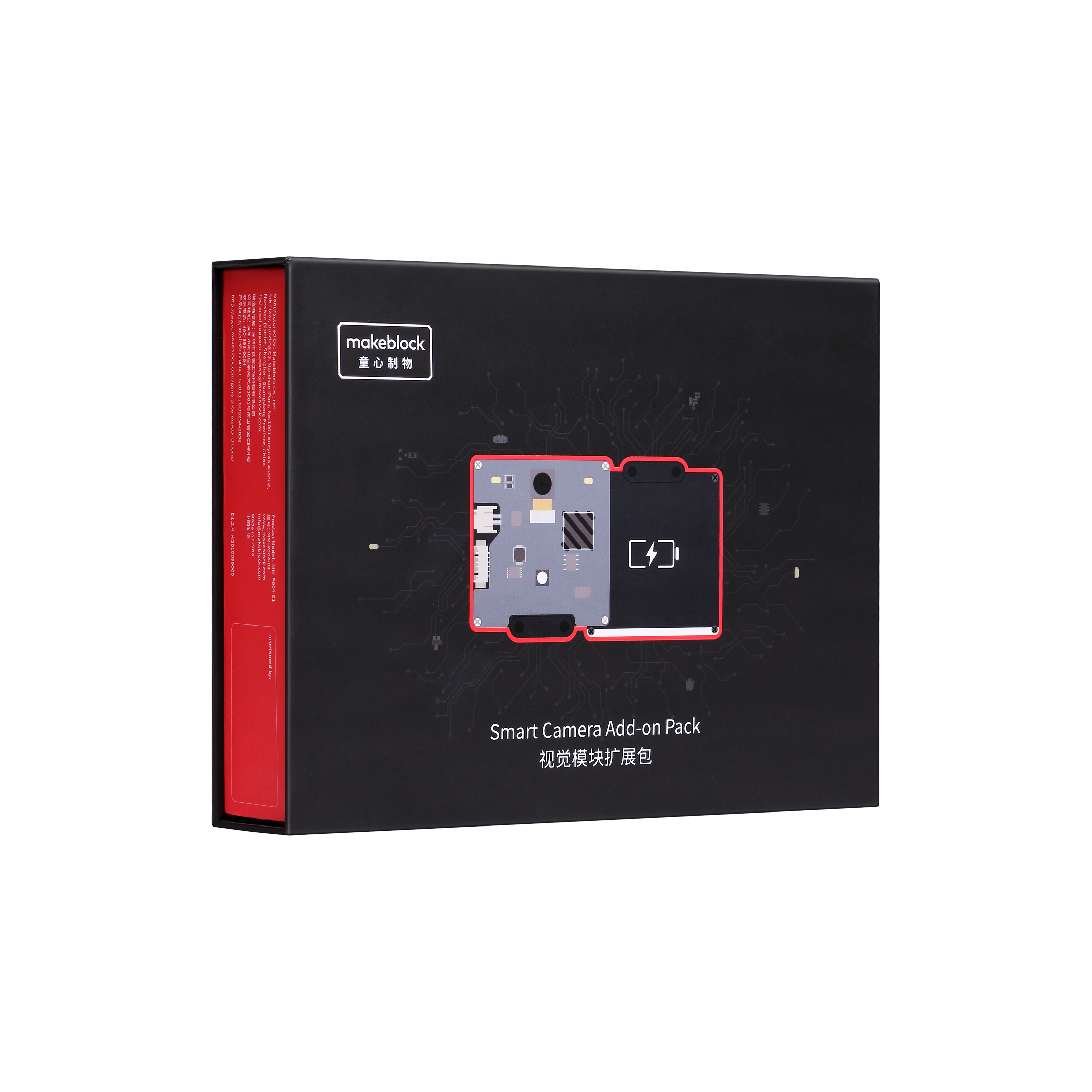

Smart Camera Add-on Pack for mBot2
Makeblock Smart Camera add-on pack for mBot2
The Smart Camera add-on pack for mBot2 enables the robot to recognize colored objects, detect barcodes, and follow lines. It can be used in diverse applications like garbage sorting, intelligent transportation, object tracking, and line following.
Features
Color learning
The smart camera can learn brightly colored objects and identify the color blocks after learning, and then return their coordinates, length, and width.
Learn a colored object as follows:
Long press the Learn button until the indicator turns red (orange, yellow, green, blue, or purple, different colors indicate learning different objects), and then release the button.
Place the color block to be learned in front of the camera.
Observe the indicator on the front or back of the smart camera, and slowly move the object to be learned until the color of the indicator matches the object.
Short press the Learn button to record the current learned object. After the learning is successful, when the camera recognizes a learned object, the color of the indicator becomes the same as that of the learned object.
A maximum of seven objects can be learned and recorded in this mode.
Long press the Learn button until the indicator turns red (orange, yellow, green, blue, or purple, different colors indicate learning different objects), and then release the button.
Place the color block to be learned in front of the camera.
Observe the indicator on the front or back of the smart camera, and slowly move the object to be learned until the color of the indicator matches the object.
Short press the Learn button to record the current learned object. After the learning is successful, when the camera recognizes a learned object, the color of the indicator becomes the same as that of the learned object.
A maximum of seven objects can be learned and recorded in this mode.
Bar codes and lines recognizing
The smart camera can detect bar codes, lines, and branch roads simultaneously without learning.
Switch the smart camera to the line/label tracking mode to detect and return the coordinate information of bar codes, lines, and branch roads.
Bar codes recognizing
Bar code cards and stickers are included in the package.
The smart camera can detect bar codes, lines, and branch roads simultaneously without learning.
Switch the smart camera to the line/label tracking mode to detect and return the coordinate information of bar codes, lines, and branch roads.
Bar codes recognizing
Bar code cards and stickers are included in the package.
PixyMon
The smart camera supports PixyMon software. You can use PixyMon to view the camera screen, adjust smart camera functions, and fine-tune some parameters to explore more complex features.
The smart camera supports PixyMon software. You can use PixyMon to view the camera screen, adjust smart camera functions, and fine-tune some parameters to explore more complex features.
Parameters
Dimensions: 48 × 48 (mm)
Resolution: 640 x 480
Field of view: 65.0 degrees
Effective focal length: 4.65±5% mm
Recognition speed: 60fps
Recognition distance: 0.25–1.2 (m)
Fall resistance: 1m
Power supply: 3.7V lithium battery or 5V mBuild power module
Power consumption range: 0.9–1.3W
Operating temperature: -10℃–55℃
Dimensions: 48 × 48 (mm)
Resolution: 640 x 480
Field of view: 65.0 degrees
Effective focal length: 4.65±5% mm
Recognition speed: 60fps
Recognition distance: 0.25–1.2 (m)
Fall resistance: 1m
Power supply: 3.7V lithium battery or 5V mBuild power module
Power consumption range: 0.9–1.3W
Operating temperature: -10℃–55℃
